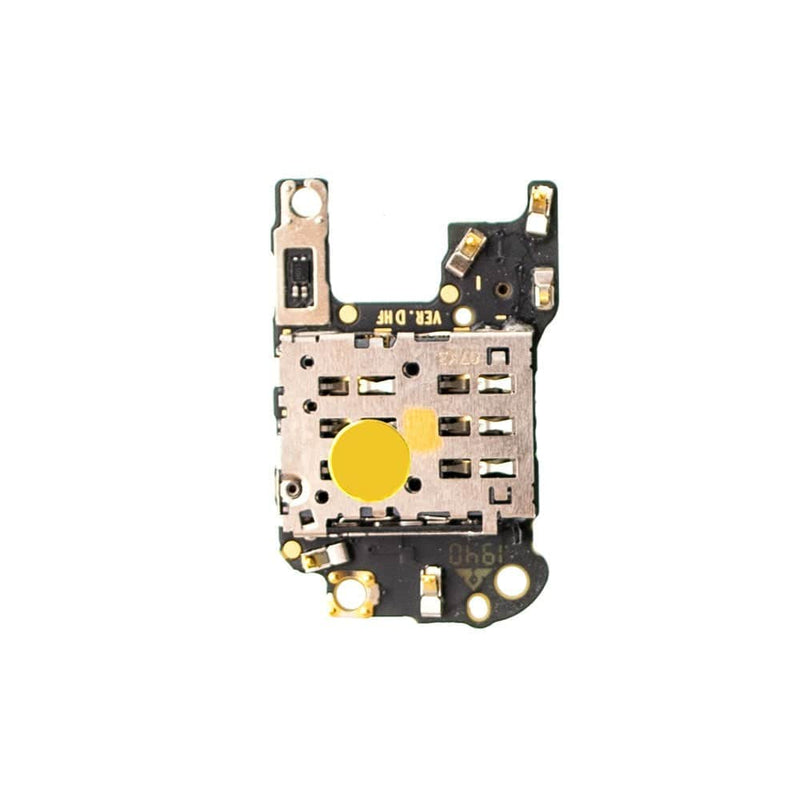

Huawei P30 Pro SIM card reader and microphone flex board
Replace a damaged internal SIM-reader board in a Huawei P30 Pro with this part-only reader and microphone assembly. It is intended for technicians and experienced repairers; installation labour is not included.
Compatibility
- Huawei P30 Pro VOG-series devices
- Common model families include VOG-L09 and VOG-L29
Regional single-SIM and dual-SIM layouts can differ. Check the phone's exact VOG model number and compare the original reader, connectors and board shape with the product image before ordering.
Not compatible with the standard Huawei P30 ELE series or P30 Lite MAR series.
What is included
- One internal SIM-card reader flex/PCB assembly
- Microphone component and board connectors shown in the product image
The removable SIM tray, SIM or NM memory card, antenna cables, interconnect flex, phone, tools, adhesive and installation labour are not included. This is not represented as a Huawei Service Pack or original manufacturer part.
Suitable fault checks
- Damaged or bent contacts inside the SIM reader
- Intermittent or missing SIM detection after card and software checks
- Microphone fault traced to this lower reader board
SIM and microphone faults can also be caused by the SIM card, tray, antenna cable, interconnect flex, connector, mainboard, contamination or software. Diagnose the device before ordering; replacing this board is not guaranteed to resolve unrelated faults.
Installation notes
- Power off the phone, eject the SIM tray and disconnect the battery before removing the board.
- Do not force a stuck tray or press on the reader contacts.
- Inspect and reconnect all board and antenna connectors carefully.
- Test SIM detection and microphone operation before resealing the rear cover.
Opening the phone can affect its original dust and moisture resistance. Professional installation is recommended. Installation damage and incorrect-model purchases are not product defects. Your rights under Australian Consumer Law are not excluded.
