📱 Full Original OLED Assembly — Tested Before Shipping
Google Pixel 9 OLED Screen Replacement
with Bezel Frame + Fingerprint Sensor — Black

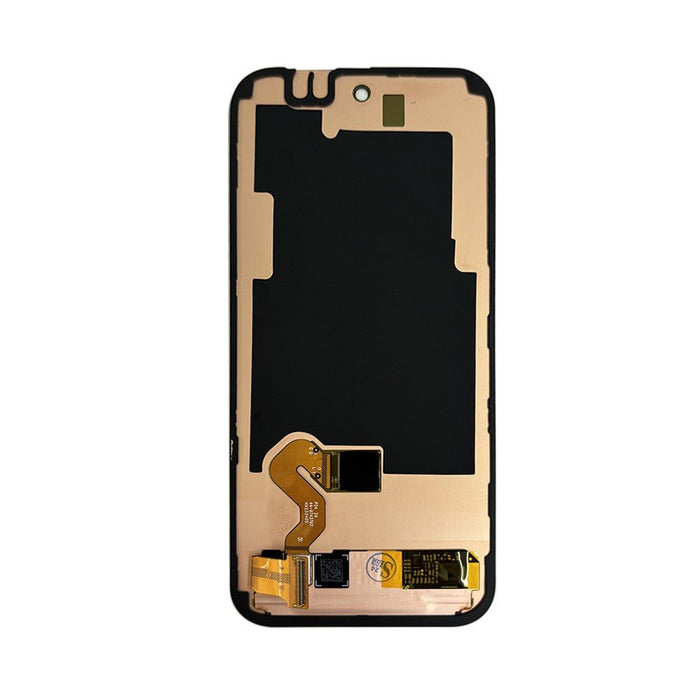

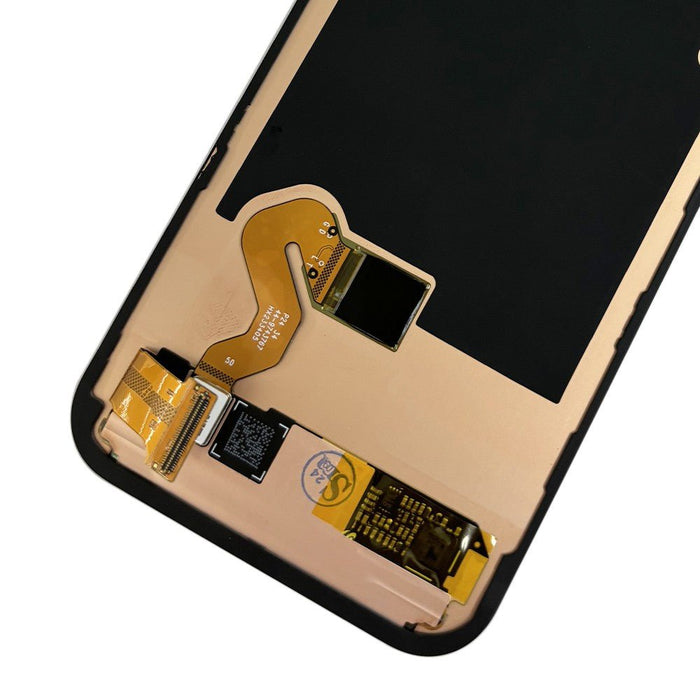

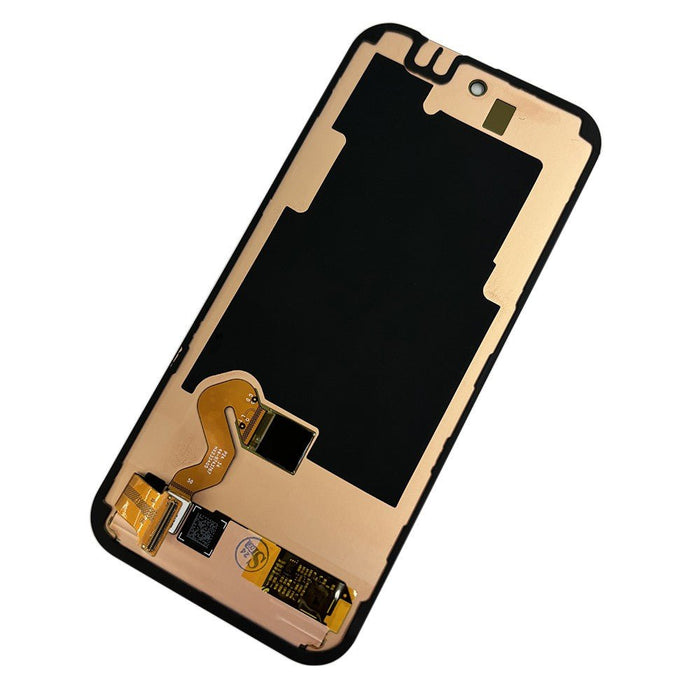

Full Original quality OLED assembly. Brand new. Includes display, bezel frame, and under-display fingerprint sensor pre-installed.
📺 6.3" OLED Actua
🖐️ UDFPS Included
✅ Factory Tested
🇦🇺 Brisbane Stock
✅ In Stock
🛡️ 12-Month Warranty
🖐️ Important: Under-Display Fingerprint Calibration
This assembly includes the UDFPS (Under Display Fingerprint Scanner). Calibration may be required after installation. Follow these steps in order:
Step 1
First bootup test: Place the phone flat on a surface. Do not touch the screen at all during first boot. The Pixel 9 may auto-calibrate the fingerprint sensor on its own.
Step 2
Test fingerprint: If the sensor works after first boot, no further calibration is needed. Set up your fingerprints in Settings as normal.
Step 3
If calibration needed: Use Google's official tool via Chrome on a PC or Mac. Boot phone into Fastboot mode (not Rescue mode), connect USB-C, and follow the prompts at the link below.
📥 Official Google Calibration Tool: pixelrepair.withgoogle.com/udfps — Requires Chrome browser, a quality USB-C data cable, and Google USB drivers installed. Use Fastboot mode — not Rescue mode (a very common mistake).
📱 Is Your Pixel 9 Screen Damaged?
A cracked or non-responsive screen affects everything you do on your phone. This complete assembly replaces the display, frame, and fingerprint sensor in one unit.
🔧 Cracked front glass — display is shattered or has spreading cracks
🖐️ Touch not responding — screen ignores taps, swipes, or gestures
🌈 Green lines or dead pixels — vertical lines or dark patches on the display
🔲 Black screen — phone powers on but the display stays dark
🌑 OLED burn-in — permanent ghost image left on the screen
🖐️ Fingerprint sensor failure — under-display sensor no longer reads correctly
✅ This full assembly — OLED panel, bezel frame, and UDFPS — replaces everything at once. One part fixes all of the above.
⚡ Full Original Quality — Why It Matters
Full Original panels use the same OLED cells as the factory build. Colour, brightness, and touch accuracy match the original.
📺
True OLED Colour
2700 nit peak brightness, deep blacks, and 24-bit colour depth. Visible outdoors in direct Brisbane sunlight.
🔬
422 PPI — No Visible Pixels
At 422 pixels per inch, individual pixels are invisible at any normal viewing distance. Text and photos appear crisp and sharp.
⚡
60–120Hz Adaptive Refresh
Automatically adjusts between 60Hz and 120Hz. Fast scrolling and gaming feel smooth. Static content drops to 60Hz to save battery.
🖐️
Capacitive Multi-Touch
High-sensitivity touch layer responds accurately to light taps and fast swipes. Works with most thin screen protectors after installation.
✅
Factory Tested Before Shipping
Every assembly is tested for display function, touch response, and dead pixels before leaving the supplier. Confirmed working before dispatch.
🛡️
12-Month Warranty
Covers manufacturing defects and display failure under normal use. Warranty handled locally by JPC Mobile, Forest Lake Brisbane.
⚠️ Professional Installation Strongly Recommended
The Pixel 9 uses a glued glass construction with fragile OLED ribbon cables. Incorrect installation can permanently damage the new display.
🔧
Adhesive and Heat Required
The rear glass must be heated and removed first. Controlled heat is needed to separate the display from the chassis without damage.
🎗️
Fragile Ribbon Cables
OLED ribbon cables tear easily under tension. Incorrect angle during reconnection causes permanent display damage — no warranty covers this.
💧
Water Resistance
Opening the device breaks the IP68 seal. Re-sealing requires correct adhesive and technique — otherwise water resistance is lost permanently.
💡 JPC Mobile offers professional screen replacement at our Forest Lake Brisbane store. Book your Pixel 9 repair by calling 0480 039 913 or visiting us in-store.
📦 In The Box
✅ 1× Google Pixel 9 Full OLED Display Assembly (display + bezel frame + UDFPS sensor)
Adhesive and installation tools are not included. A heat source, opening picks, and precision screwdrivers are required for DIY installation. JPC Mobile can perform professional installation at our Brisbane store — call 0480 039 913.
🛡️ 12-Month Warranty. Covers manufacturing defects and display failure under normal use. Does not cover damage from incorrect installation or physical impact after fitting. Warranty is handled locally by JPC Mobile, Forest Lake Brisbane.
Frequently Asked Questions
Does this screen come with the fingerprint sensor already installed?
Yes. This is a complete assembly. The Under-Display Fingerprint Sensor (UDFPS) is pre-installed beneath the OLED glass. The bezel frame is also pre-fitted. You receive one complete unit — display, frame, and fingerprint sensor — ready to fit directly into the Pixel 9 chassis. No separate sensor transfer is required from the old screen.
Do I need to run the UDFPS calibration tool?
Try the first bootup procedure first. Place the phone flat on a surface after installation and do not touch the screen at all during the first boot. The Pixel 9 often auto-calibrates the fingerprint sensor during this process. If the fingerprint sensor works correctly after the first boot, no further steps are needed. If the sensor fails to respond or gives errors, use Google's official calibration tool at pixelrepair.withgoogle.com/udfps. You will need Chrome on a PC or Mac, a quality USB-C data cable, and the phone in Fastboot mode — not Rescue mode, which is a common mistake.
What is the difference between Full Original and aftermarket OLED screens?
Full Original OLED screens use the same panel type as the factory-fitted screen. Brightness, colour accuracy, and touch sensitivity match the original specification. Aftermarket or "incell" copy screens use lower-quality LCD or OLED panels and typically show differences in colour temperature, brightness, and viewing angles. This product is Full Original quality — it restores the display to factory performance. It is the correct choice if display accuracy and fingerprint sensor functionality matter to you.
Can I install this screen myself?
Professional installation is strongly recommended. The Pixel 9 uses glued glass construction that requires controlled heat to open. The OLED ribbon cables are fragile — one wrong angle tears them permanently. If you have experience repairing modern Android phones, a heat gun, opening tools, and precision screwdrivers, DIY is possible. If not, the risk of damaging the new display during installation is significant. DIY damage is not covered by the 12-month warranty. JPC Mobile offers professional installation at our Forest Lake Brisbane store — call 0480 039 913 to book.
Will my Pixel 9 still be water resistant after a screen replacement?
The Pixel 9 is IP68 rated from the factory. Opening the device breaks the factory adhesive seal. Water resistance can be partially restored using correct adhesive during reassembly, but the original IP68 rating will not return. After a screen replacement, treat the phone as water-resistant rather than waterproof. Avoid submerging it in water. This is the same outcome for any screen replacement on any IP68-rated phone, regardless of whether the repair is done by a third-party or at a Google authorised service centre.
How do I put my Pixel 9 into Fastboot mode for calibration?
Power off the phone completely. Press and hold the Power button and the Volume Down button at the same time until the Fastboot screen appears. The Fastboot screen shows the Android mascot or text options — this is correct. Connect the phone to your PC or Mac with a quality USB-C data cable while in this mode. Open Chrome and go to pixelrepair.withgoogle.com/udfps. Important: do not use Rescue mode for this calibration — Rescue mode looks similar but the calibration tool will not detect the phone in that state.
Should I test the screen before applying adhesive?
Yes — always test before sealing. Connect the new display assembly to the phone's connectors without fully seating it in the chassis. Power the phone on and check that the display lights up, touch response works, and the fingerprint sensor responds correctly. Run through all four corners of the screen to check for dead zones. If everything works, then power off, fully seat the display, apply adhesive, and close the device. Testing first saves you from permanently sealing in a problem that could be fixed without reopening.
What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects — dead pixels, touch failure, display discolouration, or fingerprint sensor failure that were present at the time of purchase or develop under normal use. It does not cover physical damage from incorrect installation, cracking after fitting, water damage, or damage caused by a second repair attempt. To make a warranty claim, contact JPC Mobile with your order number and a description of the fault. Warranty is handled locally at our Forest Lake Brisbane store — no overseas shipping required.
Will screen protectors and cases still work after replacing the screen?
Standard tempered glass and film screen protectors work with this Full Original OLED assembly. Most thin screen protectors are also compatible with the UDFPS sensor once the phone has been calibrated. Note: during the first bootup procedure, the screen must be bare — no screen protector. Apply your protector only after the phone has fully booted and the fingerprint sensor is working. Cases made for the Pixel 9 will fit without any issue, as the bezel frame dimensions match the original chassis exactly.
Is this screen compatible with all Pixel 9 variants?
This screen is specifically designed for the base Google Pixel 9 (model numbers G2YBB, GUR25, G1B60). It is not compatible with the Pixel 9 Pro, Pixel 9 Pro XL, or Pixel 9 Pro Fold. Those models use different display sizes, connector positions, and chassis dimensions. Check your phone's model number before ordering. You can find it printed on the SIM tray or in Settings — About Phone — Model Number. If you need a screen for a different Pixel model, contact JPC Mobile on 0480 039 913 for availability.
🏪 JPC Mobile — Google Pixel Parts Specialists, Forest Lake Brisbane
Full Original OLED assembly for Google Pixel 9. Includes bezel frame and UDFPS fingerprint sensor. Factory tested. 12-month warranty. Ships Australia-wide in 2-4 business days.
