    Inner Cooling Fan for PlayStation 5 (17 Blades) - JPC MOBILE ACCESSORIES

    PS5 Inner Cooling Fan 17 Blades | NIDEC Replacement Australia

    $0.00 - $0.00
    $0.00
    $57.00
    $57.00 - $57.00
    $57.00
    SKU COOLINGFAN(17)-PS5
    โš™๏ธ PROFESSIONAL-GRADE PS5 COMPONENT

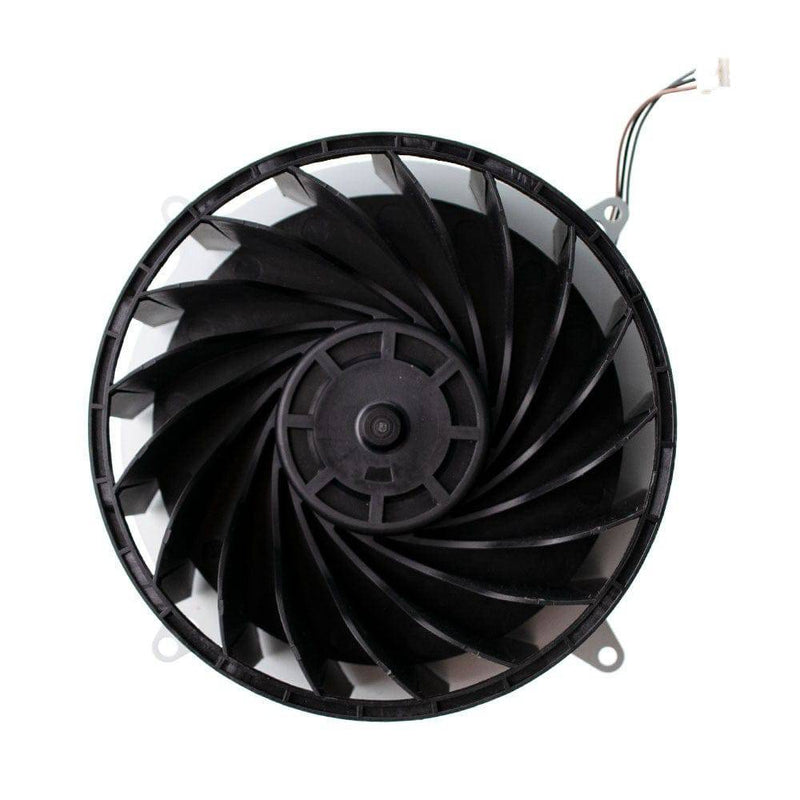

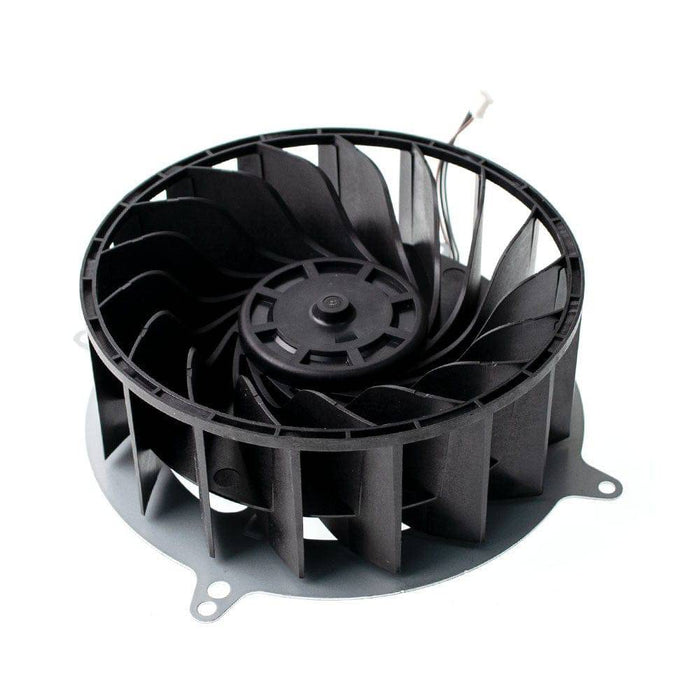

    PS5 Inner Cooling Fan (17 Blades) - NIDEC Replacement Component

    Fix PlayStation 5 Overheating, Noisy Fan & Cooling Issues | OEM-Quality Replacement | Brisbane Stock

    Part Number: G12L12MS1AH-56J14
    Manufacturer: NIDEC | 17-Blade Design
    โœ… IN STOCK - Australian Warehouse | Same-Day Dispatch
    ๐ŸŽฎ Compatible with PS5 CFI-1015A/B, CFI-1002A/B, CFI-1016A/B, CFI-1018A/B | Professional installation available in Brisbane

    โš ๏ธ Professional Installation Recommended

    PS5 cooling fan replacement requires disassembly of your console, T8 Torx screwdriver, and technical expertise. Incorrect installation may damage your PlayStation 5 motherboard or void warranty. JPC Mobile offers professional PS5 fan replacement service with same-day turnaround in Forest Lake, Brisbane.

    Why Replace Your PS5 Cooling Fan?

    ๐Ÿ”ฅ
    Fix Overheating Issues

    Restore proper thermal management. Prevent PS5 thermal shutdowns, "console too hot" warnings, and performance throttling during gameplay.

    ๐Ÿ”‡
    Eliminate Loud Fan Noise

    Replace buzzing, grinding, or excessively loud fans. The 17-blade NIDEC fan provides reliable cooling performance for extended gaming sessions.

    โšก
    Restore Peak Performance

    Failed cooling fans cause CPU/GPU thermal throttling, reducing FPS and game performance. Replace faulty fans to maintain optimal console speed.

    ๐Ÿ›ก๏ธ
    Extend Console Lifespan

    Proper cooling prevents long-term damage to PS5 components. Replace worn fans before heat damage causes permanent motherboard or APU failure.

    ๐Ÿ’ฐ
    Cost-Effective Repair

    Fan replacement costs fraction of Sony repair centre fees or new console purchase. DIY-friendly for experienced technicians.

    ๐Ÿ”ง
    OEM-Quality Component

    NIDEC manufacturer ensures compatibility and reliability. Exact replacement for original PS5 internal cooling fan specification.

    Technical Specifications

    Specification Details
    Part Number G12L12MS1AH-56J14
    Manufacturer NIDEC Corporation
    Blade Count 17 Blades (Original PS5 Design)
    Voltage 12V DC
    Current Draw 1.9A / 2.4A (Model Dependent)
    Connector Type 3-Pin Power Connector
    Cable Length 60mm / 2.36 inch Flex Cable
    Airflow Direction Exhaust (Pulls air through heatsink)
    Operating Temperature -10ยฐC to +70ยฐC
    Compatible Models CFI-1015A, CFI-1015B, CFI-1002A/B, CFI-1016A/B, CFI-1018A/B
    Weight Approximately 85g
    Condition Brand New - OEM Quality Replacement

    PlayStation 5 Model Compatibility

    This 17-blade cooling fan is compatible with the following PS5 console models:

    โœ… CFI-1015A / CFI-1015B

    Standard PS5 Digital/Disc Edition. Common model with 17-blade NIDEC cooling fan. Direct replacement compatible.

    โœ… CFI-1002A / CFI-1002B

    Early production PS5 models. Uses 17-blade fan design. Compatible with this NIDEC replacement.

    โœ… CFI-1016A / CFI-1016B

    Updated PS5 revision. Still utilizes 17-blade cooling system in some production batches.

    โœ… CFI-1018A / CFI-1018B

    Later production PS5 consoles. Verify fan blade count before ordering (some use 23-blade fans).

    โš ๏ธ How to Check Your PS5 Fan Type

    Before ordering: Remove PS5 cover and visually inspect existing fan. Count blades (17 vs 23) or check part number on fan label. Some PS5 models shipped with 23-blade Delta/NMB fans instead of 17-blade NIDEC fans.

    Common PS5 Cooling Problems This Fan Fixes

    ๐Ÿ”ฅ PS5 Overheating Shutdowns

    Symptom: Console displays "PS5 is too hot" warning and powers off during gameplay.

    Cause: Fan failure or insufficient airflow causing APU temperatures to exceed safe limits (95ยฐC+).

    Solution: Replace faulty cooling fan to restore proper thermal management.

    ๐Ÿ”Š Loud Buzzing Fan Noise

    Symptom: PS5 fan produces loud buzzing, grinding, or rattling sounds during operation.

    Cause: Worn fan bearings, dust accumulation, or blade imbalance in 17-blade NIDEC fans.

    Solution: Replace noisy fan. Consider upgrading to quieter 23-blade fan for noise reduction.

    โšก Fan Not Spinning

    Symptom: PS5 cooling fan doesn't spin on startup or stops during gameplay. Console overheats quickly.

    Cause: Fan motor failure, damaged connector, or motherboard power issue.

    Solution: Replace fan first. If problem persists, check motherboard fan header for damage.

    ๐ŸŽฎ Performance Throttling

    Symptom: Games run at reduced FPS, stuttering, or graphical glitches due to thermal throttling.

    Cause: CPU/GPU reducing clock speeds to prevent overheating when cooling is insufficient.

    Solution: Restore cooling performance with new fan to eliminate thermal throttling.

    ๐Ÿ’จ Weak Airflow

    Symptom: Little to no air exhaust from PS5 rear vents. Console runs hot but fan spins.

    Cause: Fan spinning but blades damaged, dust clogged, or motor losing power output.

    Solution: Replace fan and clean heatsink/airways for maximum cooling efficiency.

    ๐Ÿ”ง Post-Repair Fan Issues

    Symptom: Fan problems developed after PS5 repair, cleaning, or disassembly.

    Cause: Fan connector damage during service, cable pinched during reassembly, or fan contamination.

    Solution: Install new replacement fan with proper cable routing and connector seating.

    17-Blade vs 23-Blade Fan: What's The Difference?

    Sony used two different cooling fan designs in PS5 production. Here's how they compare:

    Feature 17-Blade (NIDEC) 23-Blade (Delta/NMB)
    Part Number G12L12MS1AH-56J14 12047GA-12M-WB-01
    Manufacturer NIDEC Corporation Delta Electronics / NMB
    Blade Count 17 Blades 23 Blades
    Current Draw 1.9A - 2.4A 2.4A
    Noise Level โš ๏ธ Louder - Known buzzing issues โœ… Quieter - Smoother operation
    Cooling Performance Good - Adequate airflow Better - Improved efficiency
    Cross-Compatibility โœ… Works in all PS5 models โœ… Works in all PS5 models
    Best For Exact OEM replacement Noise reduction upgrade

    ๐Ÿ’ก Pro Tip: Upgrade to 23-Blade Fan

    Many technicians upgrade 17-blade fans to 23-blade versions for quieter operation. Both fans are cross-compatible with all PS5 models. The 23-blade fan provides equivalent cooling with significantly reduced noise levels.

    Professional Installation Guide

    โš ๏ธ Technical Expertise Required

    Warning: PS5 fan replacement requires complete console disassembly, including removal of PS5 covers, motherboard shields, and heatsink assembly. Incorrect installation can damage motherboard, void warranty, or cause electrical shorts. Only proceed if you have console repair experience or book professional installation with JPC Mobile Brisbane.

    ๐Ÿ”ง Tools Required:

    • T8 Torx Screwdriver - For PS5 case screws
    • Phillips Screwdriver (PH1) - For internal screws
    • Plastic Pry Tools - To avoid scratching console
    • ESD Wrist Strap - Prevent static damage
    • Thermal Paste - Recommended for heatsink reseating
    • Compressed Air - Clean dust during disassembly

    ๐Ÿ“‹ Installation Steps:

    1. Power off PS5 completely and unplug all cables - Wait 10 minutes for capacitors to discharge
    2. Remove PS5 side panels - Lift and slide off white covers
    3. Remove motherboard shields - Unscrew all T8 Torx screws securing metal shields
    4. Disconnect fan power connector - Carefully unplug 3-pin connector from motherboard
    5. Remove heatsink assembly - Unscrew heatsink (may require thermal paste cleanup)
    6. Extract old cooling fan - Remove fan from heatsink assembly bracket
    7. Install new 17-blade fan - Secure fan in bracket, ensure correct orientation
    8. Reconnect fan power cable - Plug 3-pin connector firmly into motherboard header
    9. Reassemble PS5 - Reverse disassembly steps, reapply thermal paste if needed
    10. Test cooling operation - Power on PS5, verify fan spins and temperatures are normal

    โฑ๏ธ Installation Time:

    Experienced Technicians: 30-45 minutes
    DIY Enthusiasts: 60-90 minutes
    First-Time Repair: 90-120 minutes
