    Xbox Series X HDMI Port Replacement | Fix No Signal, Flickering & Video Output Issues - JPC MOBILE ACCESSORIES

    Xbox Series X HDMI Port Replacement | Fix No Signal Black Screen AU

    $0.00 - $0.00
    $0.00
    $14.40
    $14.40 - $14.40
    $14.40
    SKU Pull-HDMIport-XSeriesX
    🎮 GENUINE XBOX SERIES X REPLACEMENT PART

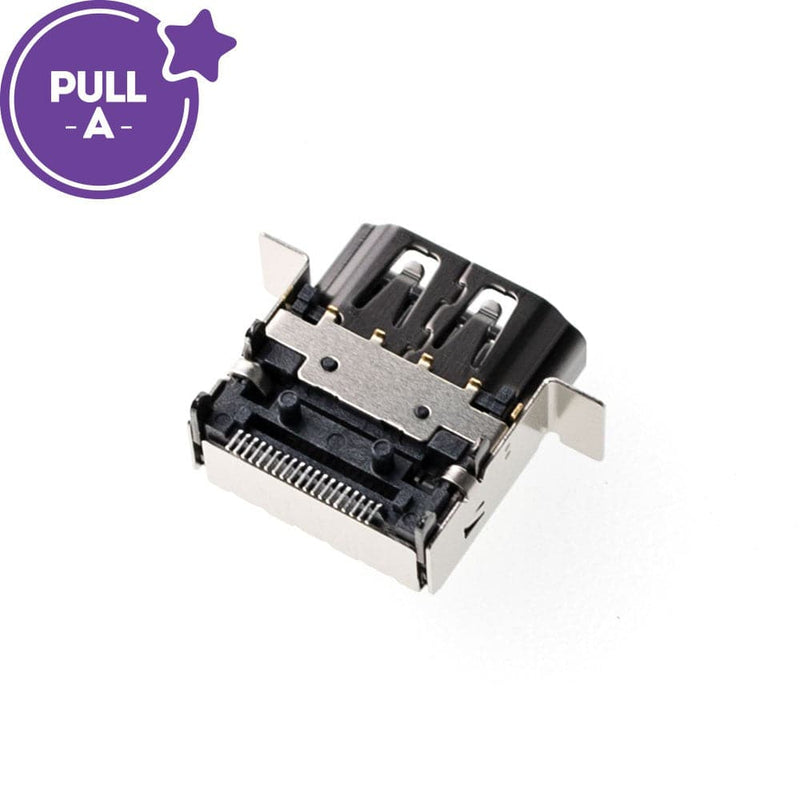

    Xbox Series X HDMI Port Replacement - Fix No Signal, Black Screen & Video Output Issues

    OEM-Quality HDMI Port | Fix Flickering Display, No Video Signal, Connection Issues | Model 1882 Compatible | Professional Installation Brisbane

    SKU: Pull-HDMIport-XSeriesX
    Compatibility: Xbox Series X Model 1882
    ✅ IN STOCK - Brisbane Warehouse | Same-Day Dispatch | Professional Installation Available
    ⚠️ Advanced micro-soldering required | Professional installation highly recommended | Expert Xbox Series X HDMI repair services Brisbane
    ⚠️ Important: Parts-Only Listing | Professional Installation Highly Recommended
    This listing is for the HDMI port replacement part only. Professional installation HIGHLY recommended - HDMI port replacement requires advanced micro-soldering skills, precision equipment, and motherboard-level repair expertise. Improper installation can cause permanent motherboard damage or component failure. Our Forest Lake Brisbane service center offers expert Xbox Series X HDMI port replacement with diagnostic testing, precision soldering, and quality guarantees.

    📺 No Signal? Black Screen? Get Gaming Again Fast!

    Xbox Series X HDMI port damage leaving you unable to play? Professional HDMI port replacement restores full video output.
    Brisbane same-day service | DIY part available or expert micro-soldering repair

    📞 Call 0480 039 913 for Same-Day Xbox HDMI Repair Brisbane

    🔧 Xbox Series X HDMI Problems This Part Fixes

    OEM-quality HDMI port replacement resolves these common Xbox Series X console display issues

    ❌

    No Signal to TV/Monitor

    Display shows "No Signal" or "No Input" message. Console powers on (lights/sounds work) but no video output to screen.

    ❌

    Black Screen/No Video

    Screen remains black after startup. Audio works but no picture displayed. HDMI handshake failure between console and display.

    ❌

    Flickering/Distorted Display

    Screen flickers, shows static, or displays corrupted graphics. Video cuts in/out randomly. Unstable HDMI connection from damaged port.

    ❌

    Loose HDMI Connection

    HDMI cable doesn't stay firmly plugged in. Cable falls out easily or wiggles. Physically damaged port housing or bent pins.

    ❌

    Intermittent Signal Loss

    Video signal drops randomly during gameplay. Screen goes black briefly then recovers. Poor electrical connection from worn port contacts.

    ❌

    Broken/Bent Port Pins

    Visible damage to HDMI port pins inside console. Pins bent, broken, or pushed back. Cable insertion forced or at angle causing physical damage.

    ❌

    Purple/Pink Screen Tint

    Display shows unusual purple, pink, or rainbow tint. Color distortion or incorrect hue. HDMI color channel failure from damaged port.

    ❌

    No 4K/120Hz Output

    Console won't output 4K resolution or 120Hz refresh rate. Stuck at 1080p or lower. HDMI 2.1 data channels compromised from port damage.

    🔍 Is Your HDMI Port the Problem? Diagnostic Checklist

    Confirm HDMI port failure before ordering replacement - prevent wrong diagnosis and unnecessary returns

    ✅ Signs Your HDMI Port Needs Replacement:

    • Console powers on (fan runs, lights work) but TV shows "No Signal"
    • Tested with different HDMI cables - problem persists (rules out cable issue)
    • Tested on different TV/monitor - still no signal (rules out display issue)
    • HDMI cable loose or wobbles when plugged into Xbox port
    • Visible bent/broken pins inside Xbox HDMI port
    • Flickering only happens on Xbox - other devices work fine on same TV
    • Purple/pink screen tint appears on Xbox only
    • Signal drops when cable moved slightly (poor physical connection)

    ⚠️ Could Be Something Else If:

    • Different HDMI cable fixes it → Cable issue, not port (test with certified HDMI 2.1 cable first)
    • Flickering only at 120Hz/VRR → Software/settings issue (disable VRR in Xbox settings)
    • Works on different TV → TV compatibility issue, not Xbox port (update TV firmware)
    • Low-resolution boot mode works → Display settings mismatch (hold Power+Eject buttons to boot at 640×480)
    • Stopped after update → Software glitch (try factory reset first)
    • All ports on TV affected → TV HDMI board issue, not Xbox

    💡 Not Sure? Our Brisbane service center offers FREE diagnostic testing to confirm HDMI port failure before you purchase parts.
    📞 Call 0480 039 913 or visit Shop 3a, 152 Woogaroo St, Forest Lake QLD 4078

    OEM-Quality Xbox Series X HDMI Port Features

    ✔ OEM Specifications
    Genuine replacement HDMI port matching Microsoft's original equipment specifications. Same quality and performance as factory-installed Xbox Series X port.
    ✔ HDMI 2.1 Support
    Full HDMI 2.1 specification support: 4K@120Hz, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), HDR10, Dolby Vision gaming.
    ✔ 19-Pin Configuration
    Standard HDMI Type A female connector with all 19 pins intact. Supports full bandwidth for 48Gbps data transfer rate required for 4K@120Hz.
    ✔ High-Quality Materials
    Durable metal housing, gold-plated pins for optimal signal transmission, precision-machined contacts for secure cable retention.
    ✔ Model 1882 Compatible
    Designed specifically for Xbox Series X console (Model 1882). Direct replacement for damaged or worn original HDMI port.
    ✔ Pre-Installation Tested
    Every HDMI port tested before shipment: continuity verified, pin alignment checked, quality control passed. Defect-free guarantee.

    ⚡ HDMI Port Installation Information

    💡 Advanced Difficulty - Professional Installation HIGHLY Recommended

    Xbox Series X HDMI port replacement requires advanced micro-soldering skills, precision equipment, and motherboard-level repair expertise. This is NOT a beginner-friendly repair. The HDMI port is surface-mounted with extremely small pins requiring hot air rework station, flux, soldering iron with micro tip, and magnification. One mistake can permanently damage motherboard traces. Professional installation ensures proper alignment, secure solder joints, and functional restoration.

    🔧 Required Equipment

    • Hot air rework station (350-400°C)
    • Soldering iron with micro tip
    • Flux (no-clean or rosin-based)
    • Solder wick/desoldering braid
    • Precision tweezers
    • Magnification (microscope/loupe)
    • Isopropyl alcohol (IPA) 99%
    • ESD-safe workspace and tools

    📋 Installation Steps (Overview)

    1. Full console disassembly to access motherboard
    2. Remove old HDMI port with hot air (avoid overheating)
    3. Clean solder pads with wick and IPA
    4. Apply flux to motherboard pads
    5. Align new HDMI port precisely
    6. Solder all 19 pins (check continuity)
    7. Clean flux residue thoroughly
    8. Test signal before reassembly

    ⚠️ Common Mistakes

    • Overheating motherboard (lifts traces)
    • Poor pin alignment causing shorts
    • Insufficient flux (cold solder joints)
    • Bridging adjacent pins
    • Not testing continuity before reassembly
    • ESD damage from improper grounding

    🏆 Professional Service Benefits

    • Precision micro-soldering expertise
    • Professional-grade equipment
    • Diagnostic testing before/after
    • Quality guarantee on workmanship
    • Same-day turnaround Brisbane
    • No risk of motherboard damage

    🚨 WARNING: Attempting HDMI port replacement without proper skills/equipment can result in permanent motherboard damage. We strongly recommend professional installation. Brisbane service: 0480 039 913

    Why Do Xbox Series X HDMI Ports Fail?

    1. Physical Damage from Cable Insertion

    Forced insertion at wrong angle bends or breaks internal pins. Heavy HDMI cables pulling on port from weight. Children or pets yanking cables. Most common cause of HDMI port failure.

    2. Frequent Cable Plugging/Unplugging

    HDMI ports rated for ~10,000 insertion cycles. Gamers frequently switching between TV/monitor exceed port lifespan. Contact wear reduces grip and signal quality over time.

    3. Port Stress from Heavy Cables

    Thick HDMI 2.1 cables or cable extensions add weight. Constant downward pressure loosens port from motherboard solder joints. Port eventually separates from board.

    4. ESD (Electrostatic Discharge)

    Hot-plugging HDMI cables (connecting while console powered on) transfers static electricity. Can damage HDMI transmitter chip or port circuitry causing signal failure.

    5. Corrosion from Humidity

    Consoles in humid environments develop corrosion on HDMI pins. Coastal areas, basements, or poorly ventilated spaces accelerate oxidation. Corroded contacts interrupt signal transmission.

    6. Manufacturing Defect

    Small percentage of Xbox Series X units shipped with weak solder joints on HDMI port. Normal use causes port to detach from motherboard. Typically fails within first 1-2 years.

    💡 Before Replacing Port: Try These Software Fixes First

    Many "No Signal" and flickering issues are actually software/settings problems, not hardware failures

    1. Disable VRR (Variable Refresh Rate)

    Most common flickering fix. Go to Settings > General > TV & Display Options > Video Modes > Disable "Variable Refresh Rate". VRR + 120Hz causes flickering on many Samsung QLED TVs.

    2. Boot in Low-Resolution Mode

    Hold Power + Eject buttons together until second beep (~10 sec). Console boots at 640×480 resolution. Fixes "No Signal" from resolution mismatch. Adjust settings after successful boot.

    3. Power Cycle Console + TV

    Full power cycle: Hold Xbox power button until light stops flashing. Unplug console AND TV for 20+ minutes. Plug back in and restart. Clears HDMI handshake issues.

    4. Update TV Firmware

    Many flickering/black screen issues resolved by TV firmware updates. Samsung, LG, Sony regularly release HDMI 2.1 compatibility patches. Check manufacturer website for latest firmware.

    5. Try Different HDMI Cable

    Test with certified HDMI 2.1 cable first. Cheap cables cause signal issues identical to port damage. Many "no signal" problems are actually cable failures, not port damage.

    6. Disable 24Hz Video Mode

    Xbox auto-enables 24Hz for movies, causes flickering on many displays. Settings > General > TV & Display Options > Video Modes > Uncheck "Allow 24Hz". Eliminates content-switching flicker.

    ✅ If these fixes work: Your HDMI port is fine! Issue was software/settings. If none work: HDMI port replacement likely needed. Call us for diagnostic: 0480 039 913

    📋 Technical Specifications

    Part Number
    Pull-HDMIport-XSeriesX
    Compatibility
    Xbox Series X (Model 1882)
    Connector Type
    HDMI Type A Female (Standard)
    HDMI Version
    HDMI 2.1 (Full Specification)
    Pin Count
    19 Pins (Standard HDMI)
    Maximum Bandwidth
    48 Gbps (HDMI 2.1)
    Supported Resolutions
    4K@120Hz, 8K@60Hz, 1440p@120Hz, 1080p@120Hz
    HDR Support
    HDR10, Dolby Vision, HLG (Hybrid Log-Gamma)
    VRR Support
    Yes (Variable Refresh Rate)
    ALLM Support
    Yes (Auto Low Latency Mode)
    Pin Material
    Gold-Plated (Corrosion Resistant)
    Housing Material
    Metal Shielded (EMI Protection)
    Mounting Type
    Surface Mount (SMD)
    Package Contents
    1× Xbox Series X HDMI Port Replacement
    Installation
    Professional Micro-Soldering Required
    Quality Control
    Pre-Tested, Continuity Verified

    Brisbane Stock & Australian Support

    Located in Forest Lake, Brisbane - Your trusted source for Xbox Series X console repair parts & services

    🚚 Fast Australian Shipping

    Orders before 2PM AEST ship same day from Brisbane warehouse. Express delivery available Australia-wide with tracking.

    🛠️ Professional HDMI Port Installation

    Brisbane Xbox Series X HDMI port replacement services. Expert micro-soldering with precision equipment and quality verification.

    ⚡ Same-Day Repair Service

    Drop off your Xbox Series X at our Forest Lake store. Most HDMI port replacements completed same day with testing and warranty.

    📞 Local Xbox Expert Support

    Brisbane-based technical team. Phone: 0480 039 913. Expert advice on Xbox Series X repairs and diagnostic testing.

    🏪 Visit Our Store

    Shop 3a, 152 Woogaroo St, Forest Lake QLD 4078. Drop off consoles for professional HDMI port replacement services.

    💼 Trade Accounts Welcome

    Business wholesale pricing for Xbox repair shops. Volume discounts available. Contact for B2B pricing.

    ✅ Quality Guarantee

    Every HDMI port tested before shipment. Pin continuity verified. Australian consumer law protection.

    🔬 FREE Diagnostic Testing

    Not sure if HDMI port is the problem? Bring console to our store for free diagnostic testing before purchasing parts.
