🎮 PROFESSIONAL REPAIR PARTS

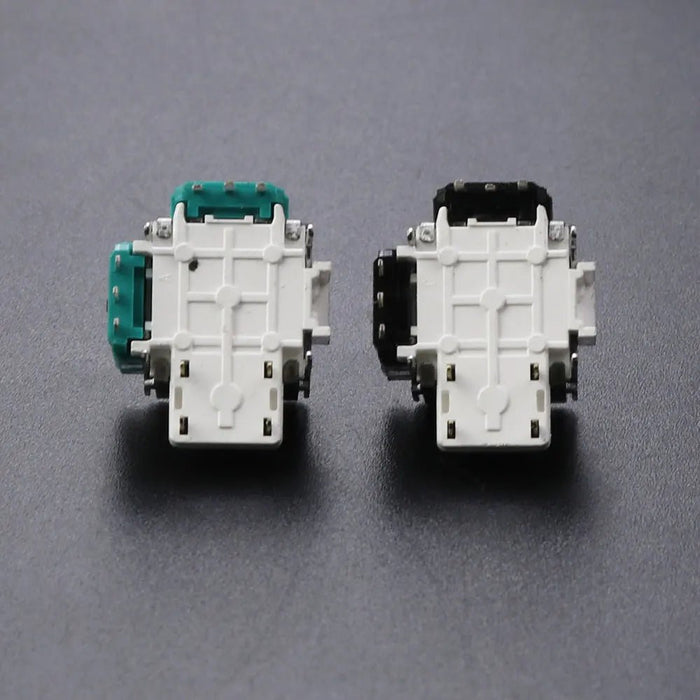

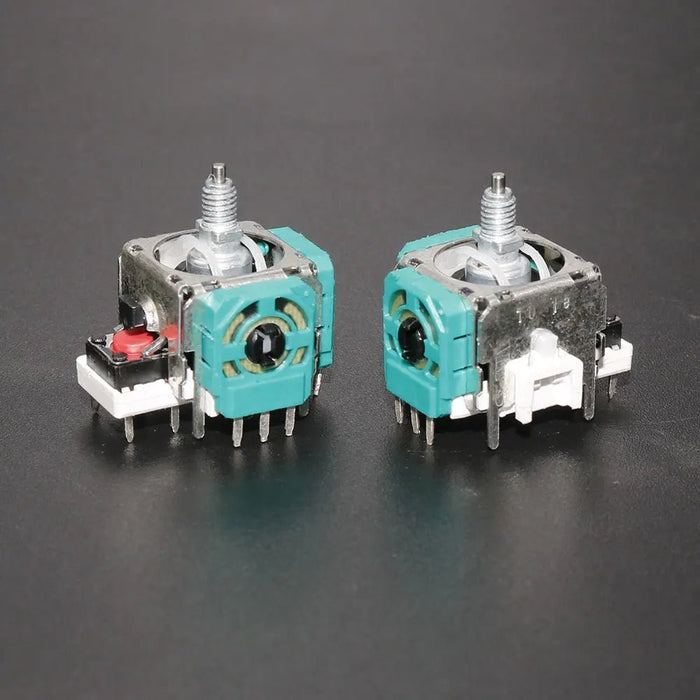

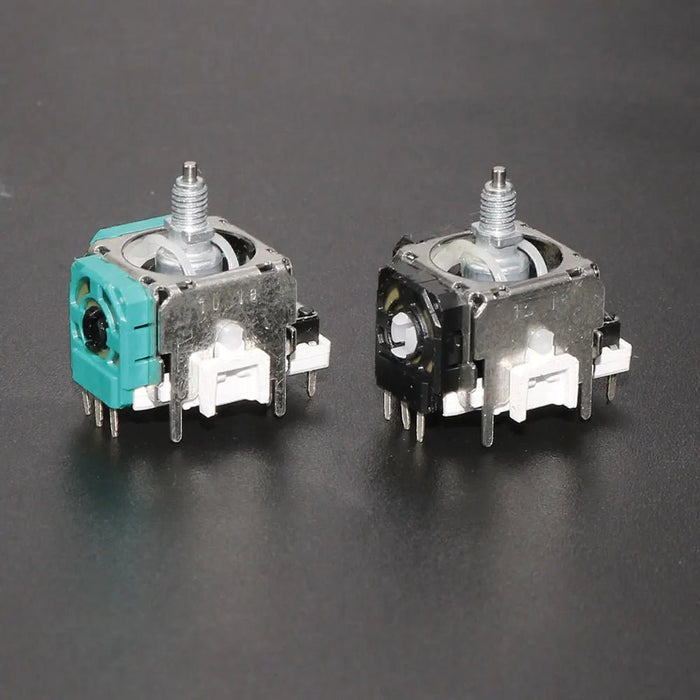

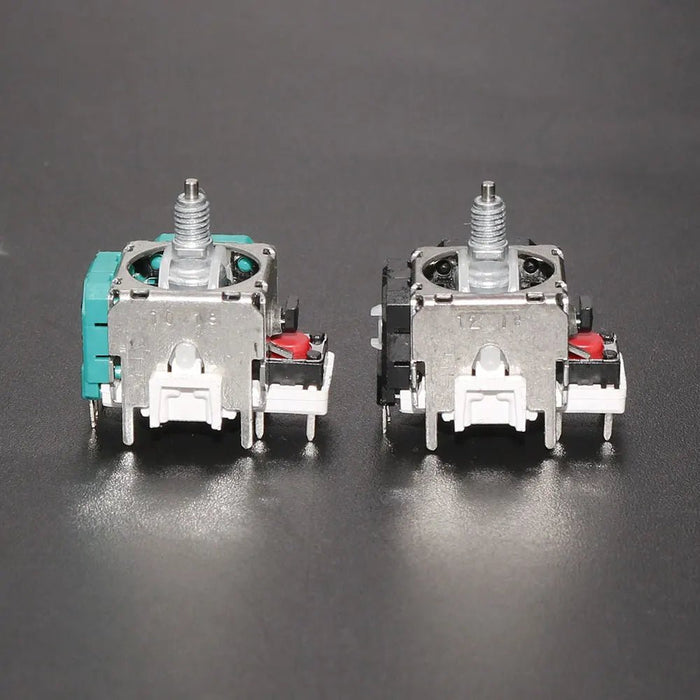

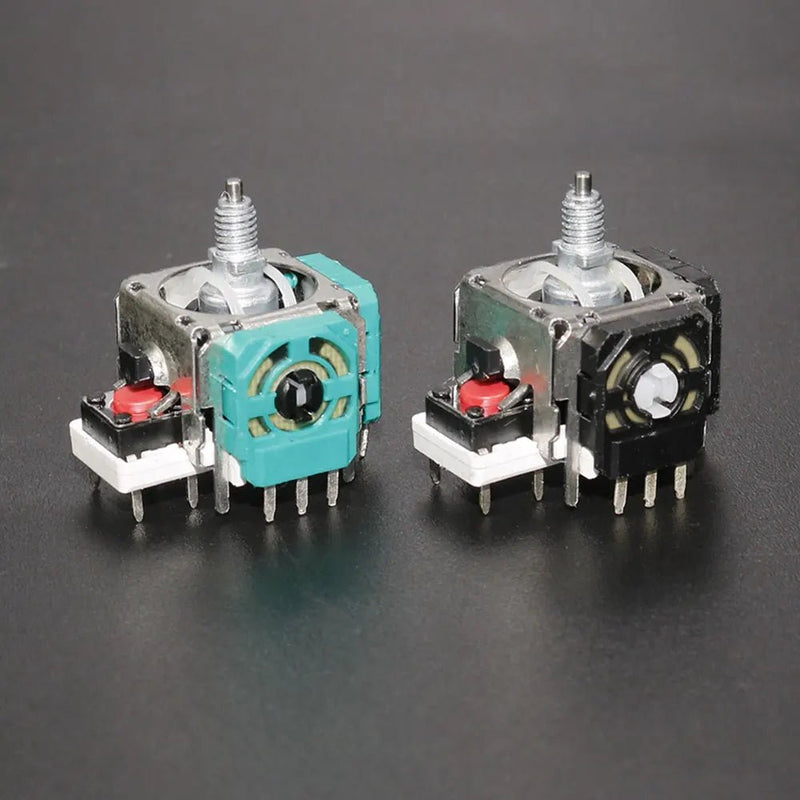

Original 3D Analog Joystick
Xbox One Elite Series 2 Controller
Fix Stick Drift | OEM-Equivalent Module | Precision Sensors
SKU: Joystick-XOneES2 | Model: 1797 Compatible
🎮 Elite Series 2 🔧 3D Analog 🎯 Stick Drift Fix 🇦🇺 Brisbane Stock
✅ In Stock - Ready to Ship 💰 Save $60+ vs New Controller
❓ Frequently Asked Questions
What exactly is stick drift and how does this part fix it?
Stick drift is a common problem affecting Xbox Elite Series 2 controllers where the thumbstick registers movement even when you are not touching it. This causes your character to walk on its own in games, menus to scroll unexpectedly, or your aim to move without input. The problem occurs because the potentiometer sensors inside the analog joystick module wear out over time from intensive gaming sessions. These sensors measure the position of the thumbstick, and when they degrade, they send incorrect position data to the console. This replacement 3D analog joystick module contains fresh potentiometer sensors that accurately read thumbstick position without the drift caused by worn components. By desoldering the old joystick module and installing this new one, you restore the controller to factory-fresh precision. The repair eliminates the drift problem completely rather than just masking it with software dead zone adjustments which reduce sensitivity. For competitive gamers and anyone frustrated by their Elite Series 2 developing drift, this module provides the permanent hardware fix needed to restore full controller functionality.
Is this compatible with my Xbox Elite Series 2 controller?
This joystick module is specifically designed for the Xbox One Elite Wireless Controller Series 2, which is the second generation Elite controller identified by Model number 1797. The Elite Series 2 features the adjustable tension thumbsticks, swappable components, built-in rechargeable battery with charging dock, and the distinctive soft-touch rubber grip. If your controller matches these features and has the Model 1797 designation on the rear label, this module is compatible. It is critically important to understand this module is NOT compatible with standard Xbox One controllers, Xbox Series X/S controllers, the original Elite Series 1 controller, or any third-party controllers. The internal joystick mounting points and electrical connections differ between controller generations, making cross-compatibility impossible. If you are unsure which Elite controller you have, the easiest identification method is checking for the built-in rechargeable battery and charging dock that only the Series 2 includes. The Series 1 uses replaceable AA batteries. Attempting to install this module in an incompatible controller will result in the module not fitting the mounting holes correctly.
What tools do I need to install this joystick module?
Installing this joystick module requires several specialized tools that are not included with the part. You will need a quality soldering iron with a fine tip capable of precision electronics work, along with quality solder appropriate for electronics. A desoldering pump or desoldering wick is essential for removing the old solder from the existing joystick connections without damaging the circuit board traces. For disassembling the controller, you need both T6 and T8 Torx security screwdrivers as the Elite Series 2 uses tamper-resistant fasteners throughout the housing. Plastic prying tools or spudgers help safely separate the controller shell halves without scratching or cracking the plastic. An anti-static mat and wrist strap protect the sensitive electronics from static discharge that could damage components. Additionally, having good lighting and possibly a magnifying glass helps with the precise soldering work on the small connection points. Isopropyl alcohol and cotton swabs clean flux residue after soldering. If you do not have experience with soldering electronics, we strongly recommend having a professional technician perform this repair as improper technique can permanently damage the controller mainboard.
How difficult is this repair compared to other controller repairs?
This joystick replacement is considered an advanced repair that requires significantly more skill than simple component swaps like replacing thumbstick caps or triggers. The difficulty stems from the soldering requirement, as the joystick module has multiple electrical connections that must be desoldered from the mainboard and new connections made with precision. Unlike repairs where components simply snap or screw into place, this repair requires hands-on experience with electronics soldering to avoid damaging the delicate circuit board traces. The process involves complete controller disassembly to access the mainboard, careful desoldering of the existing joystick module without lifting traces, positioning and soldering the new module with proper alignment, and reassembly while ensuring all ribbon cables reconnect correctly. Common mistakes include overheating and lifting traces, creating solder bridges between pins, cold solder joints that create intermittent connections, and damaging flex cables during reassembly. If you have successfully completed similar soldering repairs on electronics before, this repair is achievable. If this would be your first soldering project, we strongly recommend practising on non-essential electronics first or having a professional technician perform the repair.
Why is this repair cheaper than buying a new Elite Series 2?
The massive cost difference between this repair part and a new Elite Series 2 controller comes down to replacing only the failed component rather than the entire device. A new Xbox Elite Series 2 controller costs around seventy to one hundred dollars or more depending on retailer and availability. The stick drift problem is caused specifically by the worn potentiometer sensors inside the analog joystick module, which is a small component representing a tiny fraction of the controller's total value. By replacing just this module for under eight dollars plus the value of your time and soldering supplies, you restore full functionality while keeping all the other perfectly working components. This represents savings of sixty dollars or more compared to replacement. For gamers and repair technicians who value cost efficiency and have the skills to perform the repair, this approach makes financial sense. The Elite Series 2 is a premium controller with features worth preserving, and the stick drift problem does not indicate failure of other components. Additionally, if you have customised your Elite Series 2 with specific thumbstick tension settings or paddle configurations, repairing maintains those preferences rather than setting up a new controller from scratch.
Can I use this module to repair both the left and right thumbstick?
Yes, this joystick module can be used to repair either the left thumbstick or the right thumbstick on your Xbox Elite Series 2 controller. Both analog sticks use the same 3D joystick module design with identical mounting positions and electrical connections, making this a universal replacement for either position. If only one thumbstick has developed drift, you only need one module to fix that specific stick. If both thumbsticks are drifting, you would need to purchase two modules and perform the replacement procedure on each one. The left stick typically sees more wear in games that use it for character movement, while the right stick used for camera control may last longer depending on your gaming habits. Many experienced repair technicians recommend replacing both modules simultaneously when one fails, as the other is likely to develop similar wear issues within a similar timeframe given they experience comparable usage patterns. This approach requires opening the controller only once and ensures both sticks have fresh sensors with matched performance characteristics. However, if budget is a concern, repairing only the affected stick and ordering a spare for when the other eventually fails is also a reasonable approach.
What quality level is this joystick module compared to original?
This joystick module is manufactured to OEM-equivalent specifications, meaning it matches the original equipment manufacturer specifications for physical dimensions, electrical characteristics, and performance parameters. The 3D analog design uses the same potentiometer sensor technology as factory-installed joysticks, providing accurate position sensing across the full range of thumbstick movement. Each module is tested for proper functionality before shipping to verify the sensors respond correctly across all axes. The physical mounting dimensions match exactly so the module fits the existing mounting holes on the Elite Series 2 mainboard without modification. Electrical pin spacing matches the original solder pad layout for straightforward replacement. While not sourced directly from Microsoft's supply chain, these modules are manufactured using the same industry-standard components and production techniques. Professional repair technicians use these modules successfully for customer controller repairs where performance expectations are high. The practical difference between this module and a factory original in terms of gaming performance is negligible, with both providing the precision control Elite Series 2 owners expect. Quality repair results depend significantly on proper installation technique as well as component quality.
Will this void my Xbox Elite Series 2 warranty?
Opening your Xbox Elite Series 2 controller and performing internal repairs will void any remaining manufacturer warranty coverage from Microsoft. The controller uses tamper-evident seals and screws that indicate when the housing has been opened, and Microsoft's warranty terms explicitly exclude coverage for damage resulting from unauthorized repairs or modifications. If your Elite Series 2 is still within the original warranty period and experiencing stick drift, we recommend contacting Xbox Support first to explore warranty replacement options before attempting self-repair. Microsoft has acknowledged stick drift issues on Elite controllers and may offer repair or replacement under warranty depending on your specific situation and region. However, if your warranty has already expired, which is common given the Elite Series 2's release date and the typical timeframe for drift to develop, the warranty consideration becomes irrelevant and self-repair becomes the most cost-effective solution. Many Elite Series 2 owners experiencing drift are well past their warranty period, making this repair part an excellent option for extending the controller's usable life without the expense of replacement. Consider your warranty status carefully before proceeding with any internal repairs.
Is there a warranty on this replacement joystick part?
This joystick module is sold as-is for DIY repair use without warranty coverage. Due to the nature of electronics repair parts, where successful installation depends entirely on the skill and technique of the person performing the repair, we cannot warrant the part against damage that occurs during installation or issues that arise from improper installation technique. Before shipping, each module undergoes functionality testing to verify the potentiometer sensors respond correctly, the mechanical components move freely, and the electrical connections are sound. This pre-shipping testing ensures you receive a working part. However, once the part leaves our warehouse, variables beyond our control determine repair success including soldering technique, proper controller disassembly, static discharge protection, and correct reassembly. If you receive a part that appears damaged in shipping or is obviously defective before installation, contact us immediately with photos and we will arrange replacement. We do provide Australian-based technical support if you have questions during your repair process. For customers unsure about their repair skills, we recommend having a professional technician perform the installation to maximise the chance of successful repair outcomes.
How long does Australian shipping take for this part?
This Xbox Elite Series 2 joystick module ships from our Brisbane warehouse in Forest Lake, Queensland with standard dispatch within two to four business days after order confirmation and payment processing. Brisbane metropolitan customers including suburbs throughout Greater Brisbane, Ipswich, Logan, Redland, and Moreton Bay regions typically receive orders within three to six business days via Australia Post with full tracking provided. Regional Queensland locations including Gold Coast, Sunshine Coast, Toowoomba, Rockhampton, and Townsville usually receive deliveries within four to seven business days. Interstate shipments to Sydney, Melbourne, Adelaide, Perth, Hobart, Darwin, Canberra, and regional areas arrive within five to eight business days with complete tracking visibility throughout the delivery journey. Express shipping options are available for urgent repair needs, with metropolitan express typically arriving within two to three business days after dispatch. Brisbane local pickup is available at our Forest Lake store at Shop 3a, 152 Woogaroo Street during business hours for same-day collection if the part is in stock. Having Brisbane stock eliminates the two to four week wait common when ordering controller repair parts from overseas suppliers, getting you back to gaming much faster.
