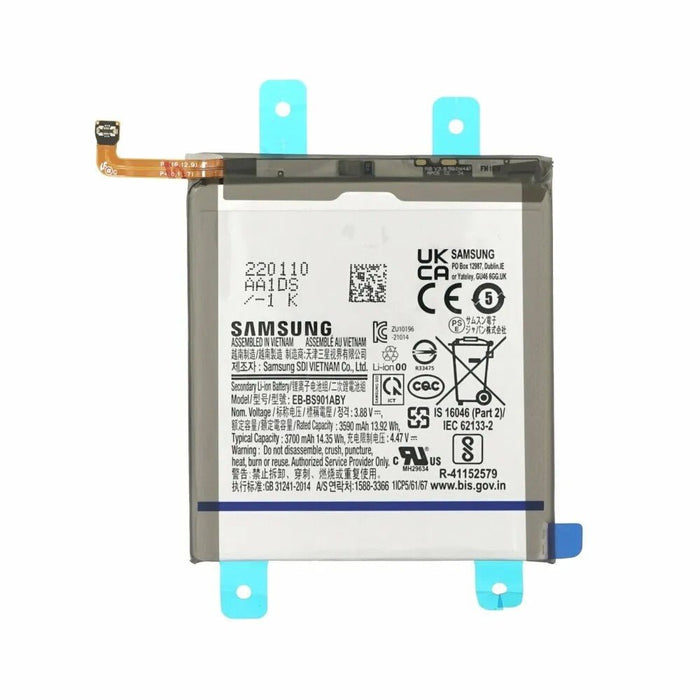

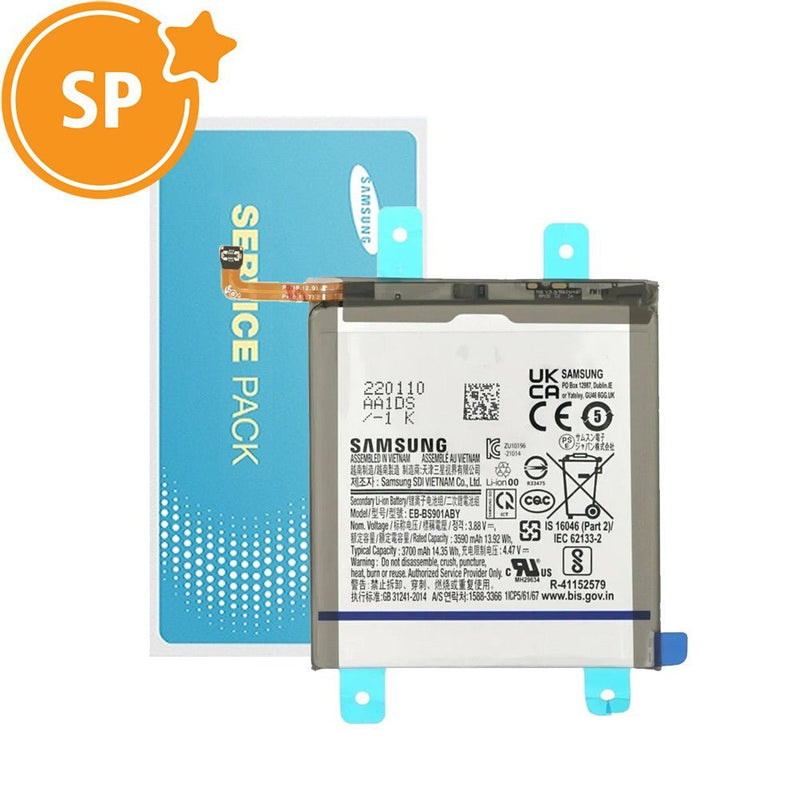

    Samsung Galaxy S22 Battery EB-BS901ABY 3590mAh GH82-27494A Service Pack 12-Month Warranty SM-S901B Battery JPC MOBILE

    Samsung Galaxy S22 Battery EB-BS901ABY 3590mAh GH82-27494A Service Pack 12-Month Warranty SM-S901B

    $0.00 - $0.00
    $0.00
    $74.16
    $74.16 - $74.16
    $74.16
    SKU SPBR-S22
    Genuine Samsung Service Pack · 12-Month Warranty

    Samsung Galaxy S22 Battery Replacement — EB-BS901ABY 3590mAh, GH82-27494A Genuine Service Pack

    Genuine Samsung Service Pack replacement battery. Fits Samsung Galaxy S22 (SM-S901B / S901U / S901N / S901E). Battery model EB-BS901ABY. Service code GH82-27494A. 3590mAh rated capacity. 3.88V nominal, 13.92Wh. Brand new lithium-ion cell. 0 cycles on install. ROHS and CE certified. 12-month warranty.

    3590mAh Rated Capacity 3.88V Lithium-Ion 0 Cycle Count ROHS & CE Certified 12-Month Warranty
    In Stock — Brisbane Bench Tested Ships 2-4 Days
    Why Service Pack Symptoms It Fixes Features What You Get Fitment Tech Specs Install Notes Warranty FAQs

    Brisbane Technical Hub

    Local Samsung battery stock at our Forest Lake counter. Walk-in voltage check before install. Battery health check after fitting. Click-and-collect ready in business hours.

    Authenticity Guaranteed

    Genuine Samsung Service Pack battery. Code GH82-27494A from Samsung's supply chain. Same cell Samsung techs install. Not a re-wrapped aftermarket cell.

    Reliable Dispatch

    Orders ship in 2-4 business days from Brisbane. Australia Post tracking included. Each battery is bench-tested for voltage and 0 cycles. Sealed-foil dispatch protects the cell.

    Why Genuine Samsung Service Pack Beats Aftermarket Cells

    Service Pack means the same battery Samsung's own service centres install. Code GH82-27494A is Samsung's supply chain ID. Cheap aftermarket cells use re-wrapped salvaged stock. Some arrive swollen. Many trip One UI battery warnings within months. This Service Pack cell ships factory-fresh at 0 cycles.

    Genuine Samsung Cell

    EB-BS901ABY pulled from Samsung Service Pack stock. Same cell Samsung Authorised Service Centres use. Not aftermarket. Not re-wrapped.

    3590mAh Rated Capacity

    Matches Samsung's original S22 battery exactly. 3590mAh rated. 3700mAh typical. Same all-day runtime as a brand-new S22.

    0 Cycle Count on Install

    Factory-fresh cell with 0 cycles. Ready for its full design lifespan. Never a recycled cell from a salvaged board.

    ROHS & CE Certified

    Manufactured to ROHS and CE standards. Independently tested with sophisticated equipment. Performs on par with Samsung OEM batteries.

    Symptoms This Battery Fixes

    Spotting any of these signs on your Galaxy S22? Your original 3590mAh cell has worn out. Time to replace it.

    Battery drains in hours

    Won't hold a full day on light use. Screen-on time drops well below normal.

    Random shutdowns

    Phone powers off at 30-50%. Common in cold weather or under camera and GPS load.

    Slow performance

    One UI throttles peak performance to stop shutdowns. Apps lag and the UI stutters.

    Battery service warning

    Samsung Members or Settings shows battery health below 80%. May warn to service the device.

    Swelling rear glass

    Back glass or screen lifting from the chassis. The cell has bloated. Needs urgent replacement.

    Slow or failed charging

    Phone barely climbs past 60%. Percentage jumps around. Charge cycle ends early.

    Genuine Samsung Service Pack — Built-In Features

    Genuine Samsung Cell

    Sourced from Samsung Service Pack supply chain. Code GH82-27494A. Same cell Samsung's own technicians install at service centres.

    3590mAh Rated Capacity

    Matches Samsung's original S22 cell exactly. 3590mAh rated. 3700mAh typical. 13.92Wh energy at 3.88V nominal.

    Original-Spec PCBA

    Samsung-grade protection circuit board. Built to original Samsung spec. Talks cleanly to One UI battery health.

    0 Cycle Count on Install

    Factory-fresh cell. 0 cycles ready to start its full design lifespan. Never recycled. Never re-wrapped.

    Pre-Fitted BTB Connector

    Samsung 3-pin board-to-board connector pre-attached. No soldering. No flex transplant. Drops straight into the S22 logic board.

    ROHS & CE Certified

    Manufactured to ROHS and CE compliance. Tested with sophisticated equipment. Performs on par with Samsung OEM batteries.

    Six-Layer Safety Protection

    Overcharge protection. Overheat protection. Overload protection. Short-circuit protection. Active temperature control. Cell PTC fuse.

    Anti-Static Foil Sealed

    Sealed in protective anti-static foil. Packed inside a rigid box. No swollen-on-arrival cells. No exposed terminals.

    What You Get

    One genuine Samsung Service Pack replacement battery. Fits the Galaxy S22. Dispatched bench-tested from our Forest Lake warehouse. Voltage and 0 cycle count verified.

    1 × Samsung EB-BS901ABY Battery

    3590mAh / 3.88V / 13.92Wh lithium-ion cell. Pre-fitted Samsung BTB connector. Sized for the S22 battery pocket.

    Bench Tested Voltage

    Each cell is tested for resting voltage. Tested for cell impedance. Tested for 0 cycle count. No bloated units leave the workshop.

    Anti-Static Foil Pouch

    Sealed in anti-static foil inside a rigid shipping box. Terminals stay safe. Cell stays protected from compression damage.

    12-Month Warranty

    Vendor-confirmed 12-month warranty. Covers premature capacity loss. Covers BMS failure. Full terms below.

    Note: Battery only. Adhesive strips and Torx bits sold separately. Plastic picks, suction tool and heat mat sold separately too. See our repair-tools collection.

    Fitment — Confirm Before You Order

    FITS This Model Only

    • Samsung Galaxy S22 (6.1" base model, 2022 release)
    • Samsung model SM-S901B (EU / UK / AU)
    • Samsung model SM-S901U (US)
    • Samsung model SM-S901N (KR)
    • Samsung model SM-S901E (India)
    • Samsung model SM-S901W (Canada)
    • Battery code EB-BS901ABY
    • Service Pack code GH82-27494A

    Does NOT Fit These Models

    • Galaxy S22+ Plus (SM-S906) — uses EB-BS906ABY 4500mAh
    • Galaxy S22 Ultra (SM-S908) — uses EB-BS908ABY 5000mAh
    • Galaxy S21 / S21+ / S21 Ultra (different cell and connector)
    • Galaxy S23 / S23+ / S23 Ultra (different cell)
    • Galaxy S24 / S25 series (any model)
    • Galaxy Note 20 series
    • Galaxy Z Fold or Z Flip series
    • Galaxy A series (A52 / A53 / A54 etc.)

    Confirm your model in Settings > About phone > Model number. Galaxy S22 base model only. The S22+, S22 Ultra and other S series use different cells.

    Full Technical Specifications

    Brand
    Samsung Service Pack
    Compatible Device
    Samsung Galaxy S22 (6.1" base)
    Phone Model Codes
    SM-S901B / S901U / S901N / S901E / S901W
    Battery Model
    EB-BS901ABY
    Service Pack Code
    GH82-27494A
    Rated Capacity
    3590 mAh
    Typical Capacity
    3700 mAh
    Voltage
    3.88 V Nominal
    Energy
    13.92 Wh
    Chemistry
    Lithium-Ion (Li-ion)
    Cycle Count on Install
    0 Cycles
    Connector
    3-Pin Samsung BTB Pre-Fitted
    Protection
    Overcharge / Overheat / Overload / Short-Circuit / Temp Control / PTC Fuse
    Certifications
    ROHS & CE
    Charging Support
    25W Wired + 15W Qi Wireless
    Packaging
    Anti-Static Foil + Rigid Box
    Warranty
    12 Months (Vendor Confirmed)
    Stock Status
    In Stock — Brisbane

    Installation Notes — DIY or Walk-In Fit

    A Galaxy S22 battery swap takes 45-60 minutes for a careful technician. Read these notes before you start. The S22 opens from the rear glass, not the screen.

    • Discharge the battery to under 25% before opening. Cuts fire risk if the cell is punctured.
    • Heat the rear glass with a heat mat or hair dryer. Softens the rear adhesive before lifting.
    • Cut the rear adhesive with a thin steel pry blade. Run it slowly around the perimeter.
    • The wireless charging coil is bonded to the rear glass on most S22 units. Lift the rear glass carefully.
    • Disconnect the battery FIRST on the logic board. Then unplug any other connectors. Protects the screen and main board from spike damage.
    • Pull the battery adhesive strips slowly at a low angle. If a strip snaps, drip isopropyl alcohol under the cell. Softens the leftover residue.
    • Never pry under a swollen cell. The cell can vent and catch fire. Bring it in to our Forest Lake counter. We remove it safely.
    • Calibrate after install: charge to 100%. Run down to 0%. Charge back to 100% uninterrupted. This seats the battery health reading.
    • One UI Battery Health note: One UI may show "non-Samsung battery" on Samsung Members. This is cosmetic only. The cell still reports cycle count and capacity to the system.

    Walk-in fit available: drop in to our Forest Lake counter. We fit it on the bench while you wait. Labour charge only. Battery price stays the same.

    12-Month Service Pack Warranty

    Vendor-confirmed 12-month warranty on every Samsung Service Pack EB-BS901ABY cell. Starts from the date of dispatch. Covers the cell and BMS protection circuit.

    • Covered: capacity drop below 80% within 12 months on normal use. BMS fails to talk to One UI. Cell will not hold charge. Factory swelling.
    • Not covered: drop or compression damage after install. Water ingress. Puncture damage. Swelling from an external short. Install errors that fry the BMS.
    • Claim process: bring or post the battery to our Forest Lake counter. Add a short note on the fault. We test, confirm and replace under warranty.

    Standard battery-category warranty rule applies. Warranty covers the cell only. It does not cover labour or damage to the host phone.

    Pay your way — Afterpay and Klarna available at checkout.

    Frequently Asked Questions

    Will this fit my Galaxy S22?+
    Yes — if your phone is the 6.1" Galaxy S22 base model. Samsung model SM-S901B, S901U, S901N, S901E or S901W. Battery code EB-BS901ABY. Will not fit the S22+ Plus. Will not fit the S22 Ultra. Will not fit any S21, S23, S24 or S25 model. Check Settings > About phone > Model number to confirm.
    Is this a genuine Samsung battery?+
    Yes — this is a Samsung Service Pack battery. Service Pack means it ships from Samsung's official supply chain. Code GH82-27494A. Same cell Samsung's own service centres install. Not aftermarket. Not re-wrapped salvaged stock.
    What does Service Pack mean?+
    Service Pack is the term Samsung uses for spare parts. They are sold to authorised service centres for repairs. The part has a Samsung supply-chain code on the packaging. EB-BS901ABY is the battery code. GH82-27494A is the Service Pack identifier. This is the same cell Samsung techs use.
    What is the rated capacity?+
    3590mAh rated. 3700mAh typical. 13.92Wh energy. 3.88V nominal. Matches Samsung's original Galaxy S22 cell exactly. We do not make fake "high-capacity" claims. The cell pocket cannot hold more than the OEM cell.
    What is the warranty?+
    12 months on the cell and BMS. Vendor-confirmed. Covers capacity loss below 80% on normal use. Covers BMS communication failure. Covers charge-hold failure. Covers factory swelling. Does not cover drop damage. Does not cover water ingress. Does not cover install errors. Bring or post the battery to Forest Lake for replacement.
    Can I install it myself?+
    Yes — if you have repair experience and the right tools. You'll need a T3 / T5 Torx screwdriver. Plastic picks. A suction cup. Isopropyl alcohol. Replacement adhesive strips. A heat source. The S22 opens from the rear glass. iFixit publishes a clear Galaxy S22 battery guide. Never opened a phone before? Walk in to our Forest Lake counter for a bench-fit.
    Why is my old battery swelling and is it dangerous?+
    A swollen lithium-ion cell has built up gas inside the pouch. The gas comes from chemical breakdown. Usually after years of heat and full discharge cycles. Yes, it is dangerous. Stop using the phone right away. Do not puncture the cell. Bring the device in or replace the battery as soon as you can. A punctured swollen cell can vent toxic gas or catch fire.
    Do I need to calibrate the new battery?+
    Yes — once installed, charge the Galaxy S22 to 100%. Run it down to 0% on normal use. Charge uninterrupted back to 100%. This seats the battery gauge reading. It also stabilises the One UI battery percentage. Skip calibration and the percentage may jump around for a few days.
    Will fast charging and Qi wireless still work?+
    Yes — this Service Pack cell supports the same charging the S22 shipped with. 25W Super Fast Charging over USB-C. 15W Qi wireless charging. 4.5W reverse wireless charging. Charging speed and behaviour match a brand-new factory cell.
    How fast does it ship across Australia?+
    Orders ship in 2 to 4 business days from our Brisbane warehouse. Australia Post tracking included. Lithium-ion batteries ship by road within Australia. This follows IATA dangerous-goods rules. No air freight surcharge. Click and collect is available. Pickup from Shop 3A, 152 Woogaroo St, Forest Lake QLD 4078. Usually ready within business hours of order placement.
